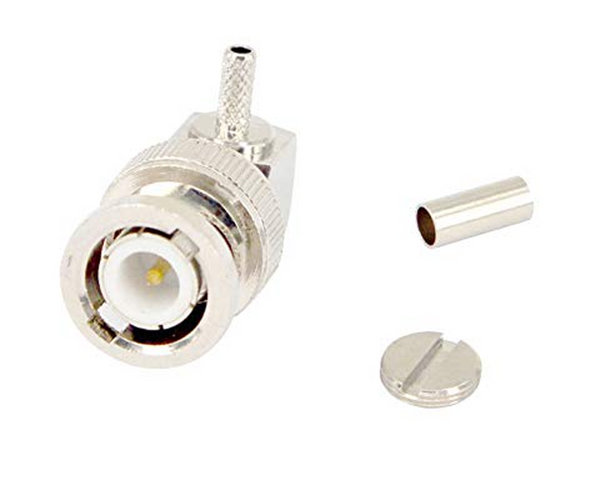

Atlantic Radio BNC Male Right Angle Crimp RF Connector RG142 LMR195 RG58 RG400 LMR200 Cable

This 90-degree BNC Male Right Angle Crimp connector solves common installation challenges in RF setups where space is limited. The compact design allows for clean 90-degree bends without kinking or stressing your cable, making it perfect for equipment racks, tight enclosures, and aerospace or marine installations. Built with a precision-machined nickel-plated brass body and PTFE dielectric, it delivers reliable electrical performance and excellent corrosion resistance. The crimp termination creates a secure, permanent connection that outperforms solder-only joints in high-vibration environments. Whether you’re building custom antenna feeds, repair BNC connections, or installing communication equipment, this connector provides the durability and signal integrity professionals demand.

Key Features:
• 90-degree right-angle design for confined spaces
• 50-ohm impedance matched for RF applications
• Nickel-plated brass body for corrosion resistance
• PTFE insulator for stable electrical properties
• Crimp body termination with solder center pin
• Frequency rated up to 4 GHz

Compatible Devices / Use Cases:
• RF antenna feed lines
• Test equipment connections
• Marine VHF/UHF radio installations
• Aerospace avionics wiring
• Commercial communication systems
• Custom coaxial cable assemblies
• Ham radio installations

Technical Specifications:
• Connector Type: BNC Male, 90-degree
• Impedance: 50 ohm
• Frequency Range: DC to 4 GHz
• Contact Material: Brass, gold-plated center pin
• Body Material: Nickel-plated brass
• Insulator Material: PTFE (Teflon)
• Termination Type: Body crimp, center pin solder
• Cable Compatibility: RG58, RG58C/U, LMR195, LMR200, RG142, RG400, RG223, CA-195
• Outer Diameter Fit: 0.195 inch cable OD
• Warranty: 1-year manufacturer

Frequently Asked Questions

What cables are compatible with this BNC connector?

This 90-degree BNC male connector works with several common coaxial cable types including RG58, RG58C/U, LMR195, LMR200, RG142, RG400, RG223, and CA-195. All these cables share approximately 0.195 inch outer diameter, ensuring a secure crimp fit. Always verify your specific cable type matches before ordering.

Do I need special tools to install this connector?

Yes, proper installation requires a coaxial cable stripper, a ratcheting crimp tool with appropriate hex dies (0.052″ for the center pin, 0.213″ for the ferrule), and a soldering iron for the center contact. Using proper tools ensures reliable connections and prevents signal loss or short circuits.

Can this connector be used outdoors or in marine environments?

Absolutely. The nickel-plated brass body and PTFE insulator provide excellent resistance to moisture, salt air, and UV exposure. This makes it ideal for marine VHF radio installations, outdoor antenna systems, and any application requiring weather-resistant RF connections.

What is the difference between crimp and solder BNC connectors?

Crimp connectors attach to the cable braid using mechanical compression (crimping), creating a very strong mechanical bond. The center pin is typically soldered for electrical continuity. This hybrid approach provides both durability and excellent signal transfer, outperforming purely soldered connections in high-vibration applications like aircraft or marine vessels.
