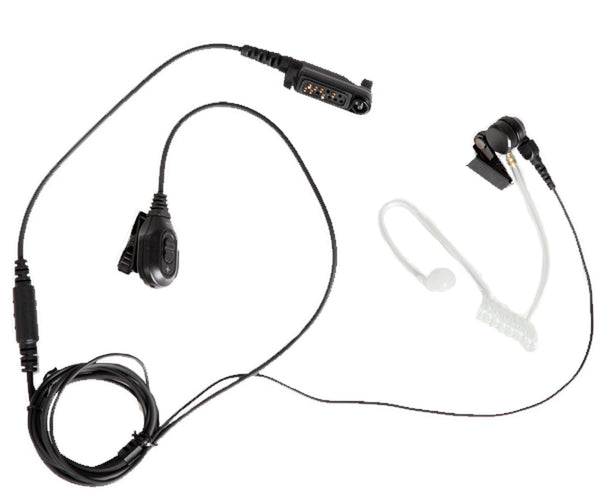

Hytera EAN24-P 2-Wire Surveillance Earpiece With Transparent Acoustic Tube

Need to stay in touch without drawing attention? The Hytera EAN24-P makes discreet communication simple.
Its transparent acoustic tube sits nearly invisible at the ear, while the soft silicone earbud stays comfortable during long shifts.
With a secure 13-pin connector and thumb screw, it stays firmly attached to your radio—no accidental disconnects mid-conversation.
Perfect for security, law enforcement, events, hospitality, and any job where clear, hands-free communication matters.

Key Features:
• Discreet transparent acoustic tube for covert, low-profile wear
• 2-wire design with inline Push-to-Talk (PTT) button and integrated microphone
• Secure 13-pin connector with thumb screw prevents accidental disconnection
• Soft silicone earbud for comfortable all-day use
• Detachable acoustic tube for easy cleaning and sharing between users
• Durable build made for demanding professional environments
• Intrinsically safe when used with Hytera H-Series Intrinsically Safe (IS) radios

Compatible Devices / Use Cases:
• Security personnel on patrol, access control, or surveillance details
• Law enforcement and tactical teams needing covert comms
• Event staff, ushers, and production crews coordinating large venues
• Hospitality and casino teams communicating quietly on the floor
• Facility, warehouse, and campus safety teams requiring hands-free operation

Compatible Hytera Radio Models:
• HP Series: HP505, HP565, HP602, HP682, HP702, HP782
• PD Series: PD602, PD662, PD682 (including “i” and UL913 versions)
• X1 Series: X1e, X1ei, X1p, X1pi

Technical Specifications:
• Weight: 55 g
• Cord length: PTT/mic ~40″, earpiece ~42″
• Connector: 13-pin with thumb screw
• Microphone sensitivity: -42 ± 3 dB @ 1 kHz
• Speaker impedance: 220 Ω ± 15% @ 1 kHz
• Speaker output: 10 mW (rated) / 30 mW (max.)
• Speaker sound pressure: 116 ± 3 dB @ 1 kHz
• Operating temperature: -20°C to 60°C (-4°F to 140°F)
• Storage temperature: -40°C to 75°C (-4°F to 185°F)
• Certification: CE; Intrinsically Safe (with Hytera H-Series IS radios)
• Warranty: 1-year manufacturer warranty

Frequenty Asked Questions

Will the Hytera EAN24-P work with my radio?

The EAN24-P is designed for specific Hytera models (HP/PD/X1 series listed above). If you don’t see your exact model, reach out with your radio model number and we’ll confirm compatibility before you buy.

Is it really discreet and comfortable for all-day wear?

Yes. The transparent acoustic tube is nearly invisible in use, and the soft silicone earbud is shaped for long shifts. The detachable tube also makes cleaning simple between users.

Can I use this hands-free without holding the PTT button?

If your compatible Hytera H-Series radio has VOX (voice-activated transmit) enabled, you can speak and transmit hands-free. The mic will detect sound above the set threshold and transmit automatically.

How secure is the connection—will it pop off during movement?

The EAN24-P uses a 13-pin connector with a thumb screw to lock it in place. Combined with the riveted clothing clip on the transducer assembly, it’s built to stay put during active patrols, events, and busy shifts.
