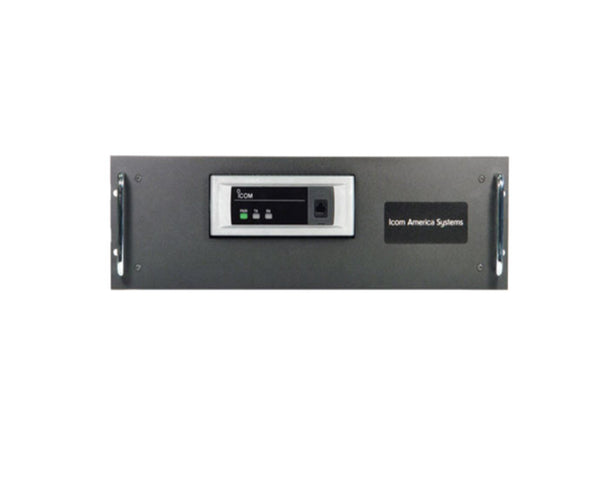

Icom CY6300 UHF IDAS Repeater | 50W

Icom CY6300
UHF IDAS PLUG AND PLAY REPEATER
The Icom CY6300 is a UHF IDAS repeater with internal power supply. Built with the latest IDAS™ UR-FR5300 series repeater module, the CY-6300 series adds simulcast to the list of optional configurations. With the internal BBU capable 112/220V AC power supply, system deployments are easier with the all-in-one repeater/base station. It maintains the bold and robust 19” rack mountable CY series chassis. This repeater replaces the CY6000 Series (CY6001 (400-470MHz) and CY6002 (450-512MHz)).
The CY6300 comes in two different frequencies: CY6301 (400-470MHz) and CY6302 (450-512MHz).
CY6300 FEATURES
UHF (400-470MHz or 450-512MHz)
50Watts
Built-in power supply: 13.8V in or 110V AC in or 220V AC in
Battery backup function with user supplied battery
3 RU tall – built-in rack handles 19” standard rack or cabinet mounting
Powder-coated steel chassis
N style bulkhead RF connectors for antennas
Built-in grounding stud
Heavy duty -temperature controlled 80 CFM cooling fan
DB-25 rear connector interface for external equipment
DC terminal strip for easy BBU connection
3 ethernet connections for networking gear or trunking bus connections
Digital RAN Code decode
5-tone & DTMF Encode/Decode (analog) CTCSS
Digital Features
IDAS Simulcast (UC-FR5300 & CF-FR5300SC)
IDAS Trunking-single or multisite (UC-FR5300 board & CF-FR5000 02)
Receives analog and digital signals on a single channel
NXDN Digital Air Interface
Strongest site search
Firmware upgrade over IP
Configuration over IP
WARRANTY
* 1-year warranty.
