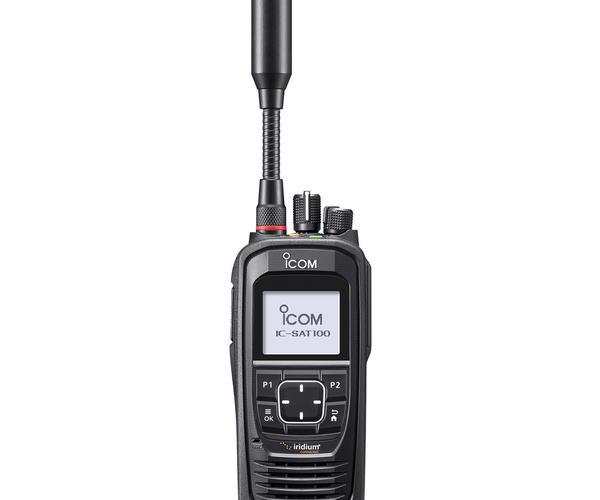

Icom IC-SAT100 Satellite PTT Two-Way Radio | Display & Limited Keypad

Key Features Of Icom IC-SAT100 Satellite

Global Satellite Communication

• Operates on the Iridium® satellite network, covering the entire planet—including both poles.

• Ensures communication in isolated or infrastructure-limited areas.

• Maintains service during natural or human-made disasters, providing a stable, independent backup network.

One-to-Many Push-to-Talk (PTT)

• Instantly communicate with all users in the same talkgroup by pressing the PTT button.

• Supports 15 talkgroups (maximum).

Performance & Audio

• Powerful 1500 mW internal speaker for clear communication in noisy environments.

• 14.5-hour battery life (TX : RX : Standby = 5 : 5 : 90) with BP-300 Li-ion battery pack.

• Real-time, low-latency communication via 66 LEO Iridium satellites.

Security & Connectivity

• AES 256-bit encryption for secure private communication.

• Interoperable with IP phones and conventional radios via the VE-PG4 RoIP gateway.

• Bluetooth® capability for hands-free operation (select models).

• Integrated GPS receiver displays received location information.

Durability

• Waterproof and dust-tight (IP67/55/54).

• MIL-STD-810G certified for vibration, shock, immersion, and temperature extremes.

• Operational range: –30°C to +60°C (–22°F to 140°F).

Convenience & Usability

• Built-in emergency key for quick distress transmission.

• Multilingual display: English, Chinese, French, German, Japanese, Spanish.

• Voice recording & short data message functions.

• AquaQuake™ function removes water from speaker grill.

• USB Micro-B charging for fast and portable power.

• SMA antenna connector supports external antenna options.

Specifications

Environmental Standards (MIL-STD-810G)

Supplied Accessories

• BP-300 Lithium-ion battery pack (2350 mAh)

• BC-241 Desktop charger

• BC-242 AC adapter

• FA-S102U Standard antenna

• MBB-5 Belt clip

Warranty

• 2-year manufacturer’s warranty on the radio

• 1-year warranty on accessories

FAQ About Icom IC-SAT100 Satellite PTT Two-Way Radio

What kind of communication does the IC-SAT100 support?

The IC-SAT100 uses satellite-based push-to-talk communication. You press the button to talk, and your voice goes through satellites instead of cell towers. This means you can talk to others anywhere on Earth, even in places with no cell signal. It uses the Iridium satellite network, which covers the entire planet.

Can the IC-SAT100 make normal phone calls?

No, it cannot make standard phone calls. It’s designed for group voice communication using push-to-talk, not for calling individual phone numbers. When you talk, everyone in your talk group hears you at the same time.

How many talk groups can it use?

It supports up to fifteen talk groups. Each talk group is like a private channel for specific teams or regions, and you can switch between them depending on who you need to talk to.

How long does the battery last?

The battery lasts around fourteen to fifteen hours under normal use. If you talk a lot or use Bluetooth, it will run out faster.

Is the IC-SAT100 durable?

Yes, it’s built for tough environments. It’s waterproof, dustproof, and meets military standards for shock, vibration, and temperature. It can handle cold, heat, and rough conditions without breaking down easily.

Does it work with Bluetooth or wired headsets?

Yes, it does. There’s a version that supports Bluetooth for wireless headsets, and you can also use wired headsets. Not every Bluetooth headset is guaranteed to work, but most high-quality ones should connect fine.

Do I need an external antenna indoors or in a vehicle?

If you’re inside a building or a vehicle, you might need an external antenna to keep a strong connection. Walls, metal roofs, and other obstacles can block the satellite signal, so an external antenna helps maintain clear communication.

Are there monthly service fees?

Yes, there usually are. You’ll need a service plan that connects your radio to the satellite network. The price depends on where you are, how many radios you have, and the coverage area you need.

Can the radio send text messages or GPS location?

Yes, it can send short messages and share location information using its built-in GPS receiver. It helps track your team or send quick updates when voice communication isn’t needed.

What happens when I press the emergency button?

When you press and hold the emergency button, the radio sends an alert and message to a pre-set emergency group. Everyone in that group will immediately hear or see your emergency call. This is useful for rescue or urgent situations.
