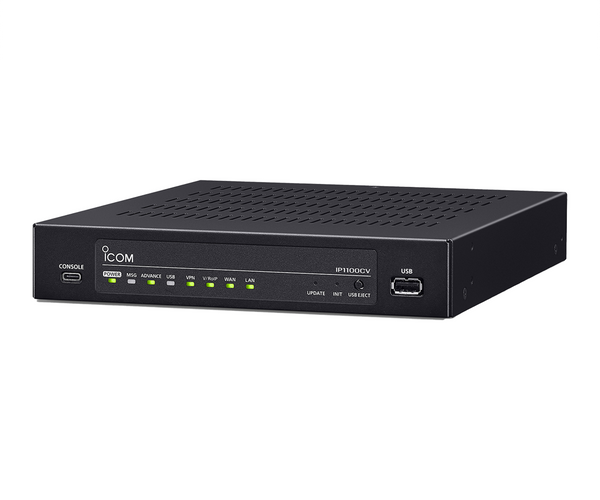

Icom IP1100CV Network Radio Controller

Icom IP1100CV
SYSTEM CONTROLLER FOR IP110H/IP100H WIRELESS LAN RADIOS
The IP1100CV is a system controller for IP110H/IP100H wireless LAN radios which communicate using a wireless LAN network. It offers scalable, license-free communication using new or existing wireless networks. Easily expand your network by adding wireless access points for more coverage. Register and control up to 300 IP110H and IP100H WLAN radios, including the IP100FS terminal. Link multiple sites using the built-in 2.5 Gbps port and VPN router function. For example, the main office can talk with branch offices in different cities, states, or countries away through the internet.
The auto-provisioning function automatically applies configuration settings when adding new radios to the network. The IP1100CV can also set up to 500 addresses with the IP110H for individual and group calls.
The auto-provisioning function automatically applies configuration settings when adding new radios to the network. The IP1100CV can also set up to 500 addresses with the IP110H for individual and group calls.
Programmable via web browser or USB drive
Online firmware updates capable
Security slot
Requires BC-207S power adapter (not included)
IP1100CV KEY FEATURES
300 WLAN Radios Can Be Registered
Up to 500 IP110H Call Addresses Programmable
2.5 Gbps WAN Port and VPN Router Function
19-inch Rack Mount Design (optional)
WLAN Radio System Programmable with a Web Browser
IP1100CV KIT INCLUDES
Magnet legs (4)
Screws (4)
Clamp
Flat washer and screw
WARRANTY
*1-year manufacturer’s warranty.
