Ritron DTX-Ls Series Wireless Transceiver Data Modules

Ritron DTX-Ls Series
WIRELESS TRANSCEIVER DATA MODULES
The DTX-Ls Series wireless transceiver modules are high performance, cost-effective, low current drain, single board OEM transceivers available in VHF and UHF frequency bands. They are designed and made in the USA. There two types of models: Radio In Housing and Board Only Version. Please see below for the various models in these two categories.

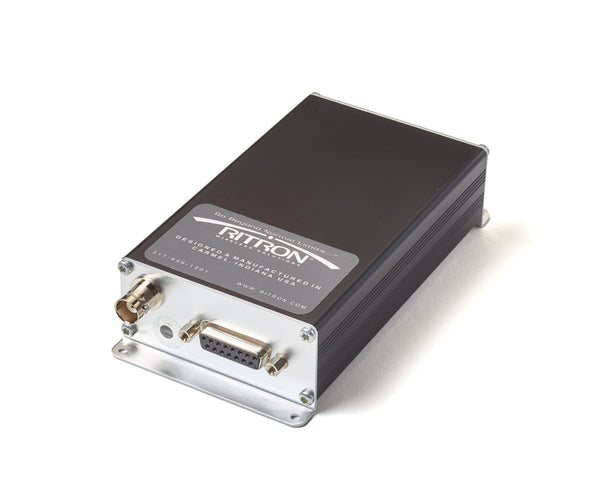

RADIO IN HOUSING
The types of models in this category include single PCB, a programmable RF transceiver with a metal enclosure, a BNC Antenna Connector, and a DB-15 Data/Power Connector.
 Model
Frequency
Bandwidth
Wattage
Voltage Req
DTX-4450BN5E
450-470MHz
Narrow Band
2-5
8-15 VDC
DTX-4450BN8E
450-470MHz
Narrow Band
2-8
8-15 VDC
DTX-445GBN5E
400-417MHz
Narrow Band
2-5
8-15 VDC
DTX-445HBN5E
411-429MHz
Narrow Band
2-5
8-15 VDC
DTX-446-0BN5E*
450-490MHz
Narrow Band
2-5
8-15 VDC
DTX-1450BN5E
136-174MHz
Narrow Band
2-5
8-15 VDC
* Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.

BOARD ONLY VERSION
The types of models in this category include a single PCB programmable RF Transceiver, SMA antenna connector, and a straight-up DB-15 Data/power connector.
Model
Frequency
Bandwidth
Wattage
Voltage Req
DTX-4450SN5D
450-470MHz
Narrow Band
2-5
8-15 VDC
DTX-4450SN8D
450-470MHz
Narrow Band
2-8
8-15 VDC
DTX-445GSN5D
400-417MHz
Narrow Band
2-5
8-15 VDC
DTX-445HSN5D
411-429MHz
Narrow Band
2-5
8-15 VDC
DTX-446-0SN5D*
450-490MHz
Narrow Band
2-5
8-15 VDC
DTX-1450SN5D
136-174MHz
Narrow Band
2-5
8-15 VDC
* Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.
WARRANTY
* 1-year manufacturer’s warranty
RITRON DTX LS DATA SHEET
